MECHANICAL

Hazard description

Mechanical hazards generated by machine elements, tools, loads, projections of solid or fluid materials… correspond to all the physical factors which can be the cause of an injury.

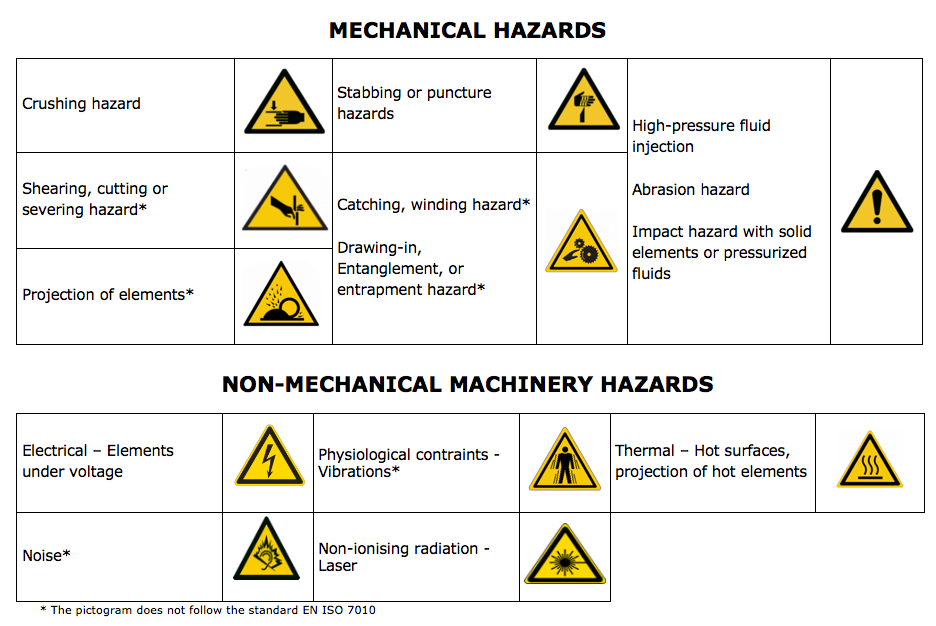

The mechanical hazards generated by machine elements are listed in the following tables:

Contact

HSE Unit expert

CERN Safety Rules

The CERN Safety documents concerning the mechanical hazards are the following:

• Safety Regulation (SR-M): Mechanical equipment
• General Safety Instruction (GSI):
  • GSI-M-1: Lifting equipment and accessories
  • GSI-M-2: Standard pressure equipment
  • GSI-M-5: Lifts
• Specific Safety Instructions (SSI):
  • SSI-M-1-1: Slings and lifting chains
  • SSI-M-1-2: Cranes, bridges cranes, gantry cranes and power driven hoists
  • SSI-M-1-3: Non-fixed load-lifting accessories
  • SSI-M-1-4: Manually powered lifting equipment
  • SSI-M-1-5: MEWP, suspended platforms, mast-climbing platforms and rail-dependent storage and retrieval
  • SSI-M-1-6: Lifting tables, vehicle lifts and tail lifts
  • SSI-M-1-7: Forklift trucks
  • SSI-M-2-1: Pressure vessels
  • SSI-M-2-2: Simple pressure vessels
  • SSI-M-2-3: Safety accessories for standard pressure
  • SSI-M-2-4: Metallic pressurised piping
  • SSI-M-2-5: Vacuum chambers and beam pipes
  • SSI-M-2-6: Transportable pressure equipment
• Safety Instruction (IS):
  • IS 42: Compressed gas bottles
• Safety Forms (SF):
  • SF-M-4-0-1: Workshop hazard identification and conformity assessment
  • SF-M-4-0-3: Workstation task sheet

Training courses

On the CERN’s Learning Hub:

Forklift Truck – Driving – Initial (Covid-19)	Classroom
Forklift Truck – Driving – Refresher (Covid-19)	Classroom
Mobile Elevating Work Platform – Driving – Initial (Covid-19)	Classroom
Mobile Elevating Work Platform – Driving – Refresher (Covid-19)	Classroom
Overhead Crane – Operator and Slinger – Initial (Covid-19)	Classroom
Overhead Crane – Operator and Slinger – Refresher (Covid-19)	Classroom
Pallet Stacker – Electrical – Pedestrian-propelled – Driving	Classroom
Pallet Stacker – Electrical – Rider-operated lift – Driving	Classroom
Pallet Truck – Manual – Driving (Covid-19)	Classroom
Towing Tractor – Heavy RTH – Driving – Initial	Classroom
Towing Tractor – Light RTL – Driving – Initial (Covid-19)	Classroom

Machine conformity

Standard machines-Lifecycle

• Purchase



  • check availability internally (EN-MME-MA)
  • all new machines must be CE

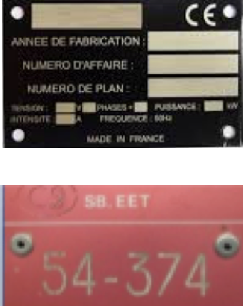

  • instruction manual, CE declaration and CE plate must be availaible
  • EDH validation by HSE specialist
• Arrival at CERN
  • contact the maintenance department (EN-MMA-MA) for identification (installation, registration in InforEAM and fixation of the identification plate)
  • make available the following documentation (in French or in English): instruction manual, CE declaration, CE plate; the documents must be archived by the holder of the machine;
  • contact the inspection department for the initial inspection: perform the inspection, archive the report and authorise the use)
  • holder declares entry into service, write and display the workstation safety sheet and informs the authorisations of use
• Use
  • in accordance with the instruction manual
  • workstation safety sheet must be present
  • by an authorised person
  • up to date periodic inspections
  • maintenance (ensuring safe use, respect the manufacturer’s recommendations)
• Dismantling
  • sale: the machine must comply with the regulations of the purchasing country (ex: CE)
  • contact EN-MME-MA: dismantling, ensure that the machine can’t be reused
  • inform the inspection service
  • archive safety documents

Non-standard machines

For non-standard machines (standard machine purchased and modify or machine designed to meet specific need) a safety file must be available including:

• the new risk analysis
• an update of the documentation (instruction manual, plan, electrical diagram…)

For the risk analysis, contact TE Safety Office.

Other informations on Fiche de Bonnes Pratiques HSE: Machines Outils EDMS 1227690

TE Workshops

Workshop Responsible (WR)

The Workshop Responsible will be responsible within the Group, to ensure that:​​​​​​

• Personal Safety measures are applied;
• Conformity of machines are checked and maintained;
• Access to the Workshop’s are secured during the outside working hours. In addition, outside normal working hours, the use of workshops shall be restricted to urgent works;
• Availability at Workshop’s entrance of relevant Workshop information (name of Workshop Supervisor, Group/Section responsible, list of machines, list of persons authorised)

Workshop Supervisor (WS)

• GSI-SO-12: WS Workshop Supervisor
• The WS shall, in particular, ensure that:
  • operators are provided, for each item of the work equipment, with the necessary operating instructions, including the conditions of use as well as information concerning the main dangers and the corresponding safeguards to be implemented, and that they comply with them;
  • agreement set out in Safety Form SF-SO-12-0-1 (Member of Personnel) and SF-SO-12-0-2 (CERN contractor) is signed by an operator who is not part of his Group and who uses the workshop for the first time;

TE Workshops

At the entrance of each workshop, it has been requested to the workshop supervisor to make available:

• a list of machines with the workshop responsible, supervisor and alternate;
• list of authorized people (separate staff from contractors);
• related safety forms duly signed;
• the list of hazard pictograms (format A3 and plasticized) “TE PDs Mécaniques à afficher”

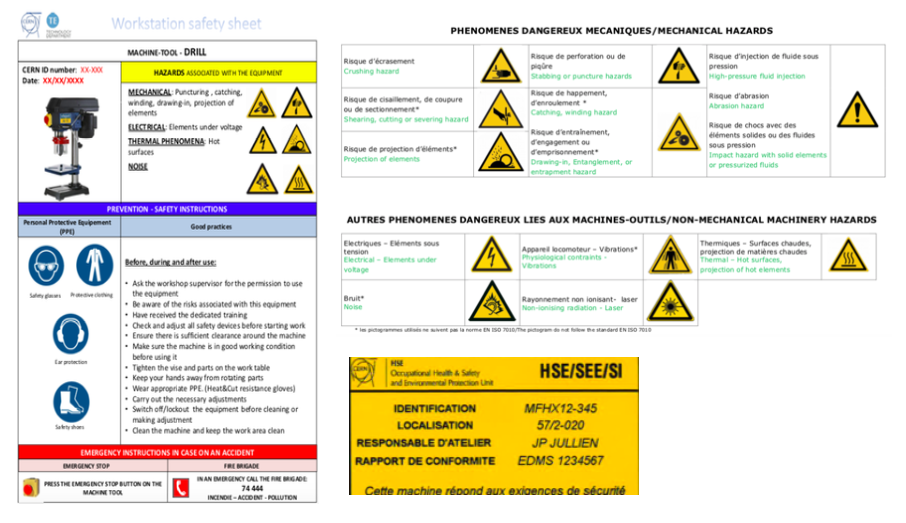

All machine tools must be equipped with workstation safety sheet (A4 format and plasticized) and with compliance sticker delivered by HSE. Workstation safety sheet for standard machine tools are available on EDMS 1756500.
